Pin type porcelain insulator
The pin insulator is directly assembled on the cross arm pin, and the wires are tied in the wire trough. P Series covers ANSI C29.6 size standards with 6/10/15/20/33 kV distribution grades, brown or gray glazed, optional RIV certification.
Distribution grade pin insulators.
- Complies with ANSI C29.6 / IEC 60383
- Available in brown or gray glaze
- Optional RIV testing
- 6 kV to 33 kV Distribution Class
Gallery
Pin type porcelain insulator — production photos
P-6T · 6 kV ANSI C29.6

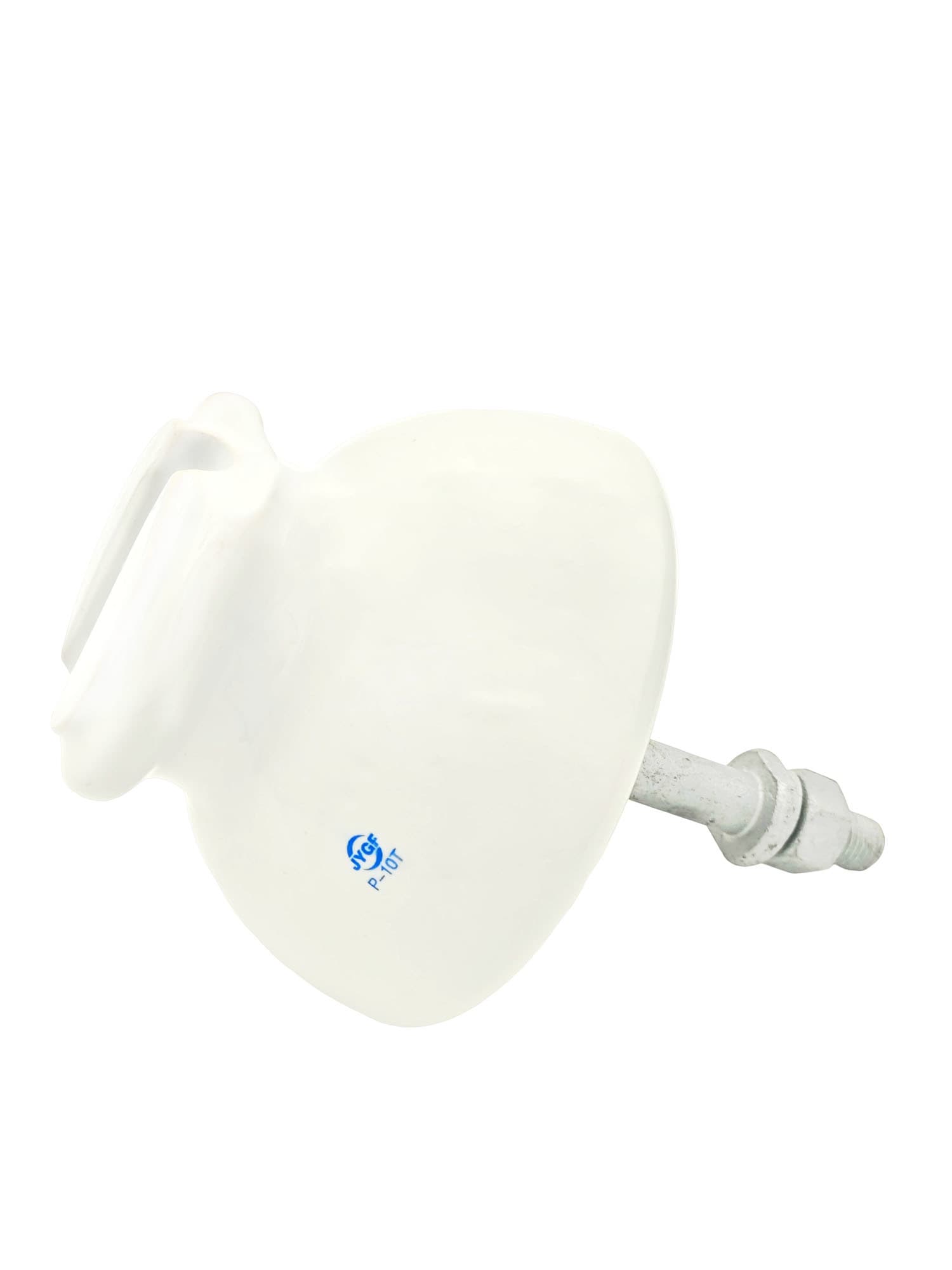

P-10T · 10 kV distribution

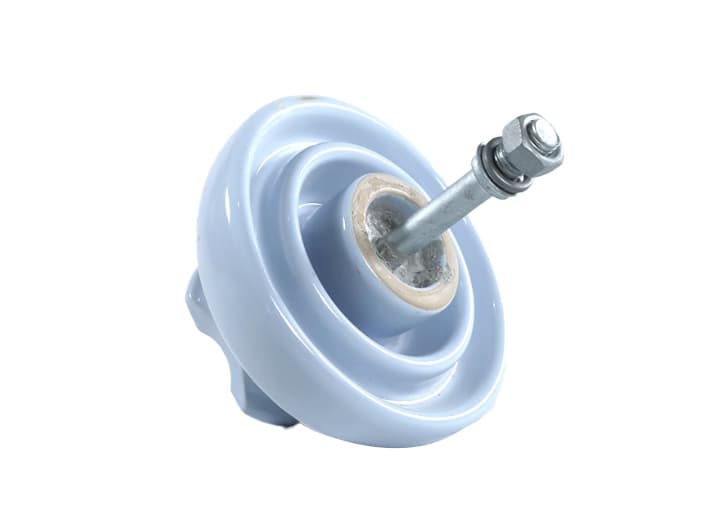

P-15T · 15 kV distribution
P-20T · 20 kV distribution
Models
Available models
| Code | Voltage class | Mechanical load | Creepage | Standard |
|---|---|---|---|---|
| P-6T | 6 kV | — | — | ANSI C29.6 |
| P-10T | 10 kV | — | — | ANSI C29.6 |
| P-15T | 15 kV | — | — | ANSI C29.6 |
| P-20T | 20 kV | — | — | ANSI C29.6 |
| P-33T | 33 kV | — | — | ANSI C29.6 |
FAQ
Frequently asked questions
Which standards do Pin type porcelain insulator comply with?
All Pin type porcelain insulator from InsulatorX are type-tested to ANSI C29.6. Type-test reports are issued by independent laboratories including CEPRI and KEMA, and buyer factory audits or witness testing are welcome.
What ratings are available for Pin type porcelain insulator?
Pin type porcelain insulator are supplied across 6–33 kV. Send us your line voltage, span tension and creepage requirement and our engineers will size the right model with margin.
Which Pin type porcelain insulator models can I order?
Catalogue models include P-6T, P-10T, P-15T, P-20T, P-33T. Custom dimensions, shed profiles, creepage extension and connection markings are available on request.
Can Pin type porcelain insulator be supplied for coastal or heavy-pollution lines?
Yes. We raise creepage distance and offer fog / anti-pollution profiles or hydrophobic silicone housings, sized to your site pollution class — typically class III to IV near the coast.
How do I request a quotation and what is the lead time for Pin type porcelain insulator?
Email your specifications — voltage, mechanical load, creepage, environment, quantity and INCOTERM — to support@insulatorx.com. We reply within one business day; lead time is 4 to 6 weeks for standard models and 8 to 14 weeks for custom designs, shipped EXW / FOB / CIF / DDP.
