Disc suspended porcelain insulator for ground wire
Ground suspension insulators have lower electrical loads but are subject to the same mechanical and environmental stresses of the phase conductor strings. XP series dimensions are optimized for OPGW and lightning protection wire fittings, with optional arc angle protection.
Compact suspension insulator for OPGW and lightning conductors.
- 40-100 kN Electromechanical load level
- OPGW Optimize size
- GB/T 7253 Standard test
- Optional corner protection
Gallery
Disc suspended porcelain insulator for ground wire — production photos
UE100C · 100 kN OPGW assembly

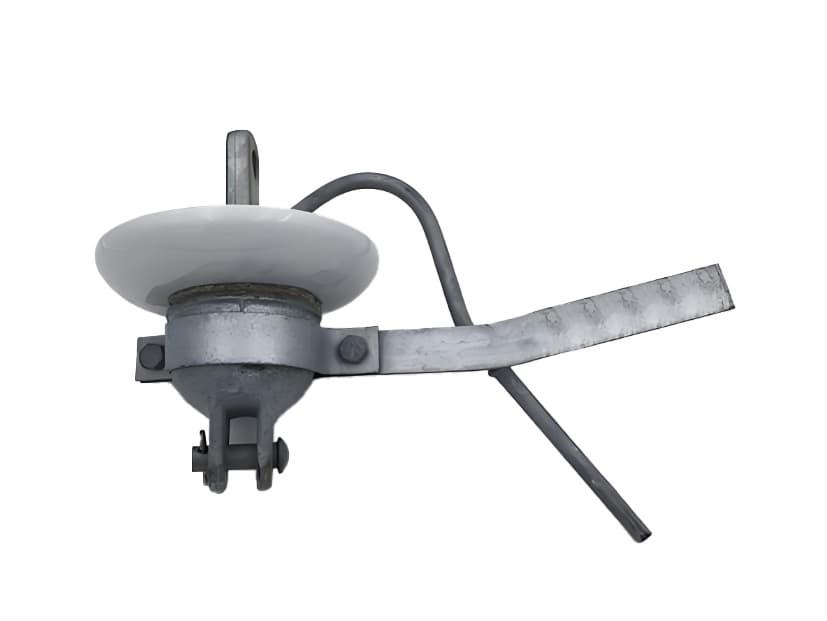

UE100CN · zinc-collared 100 kN

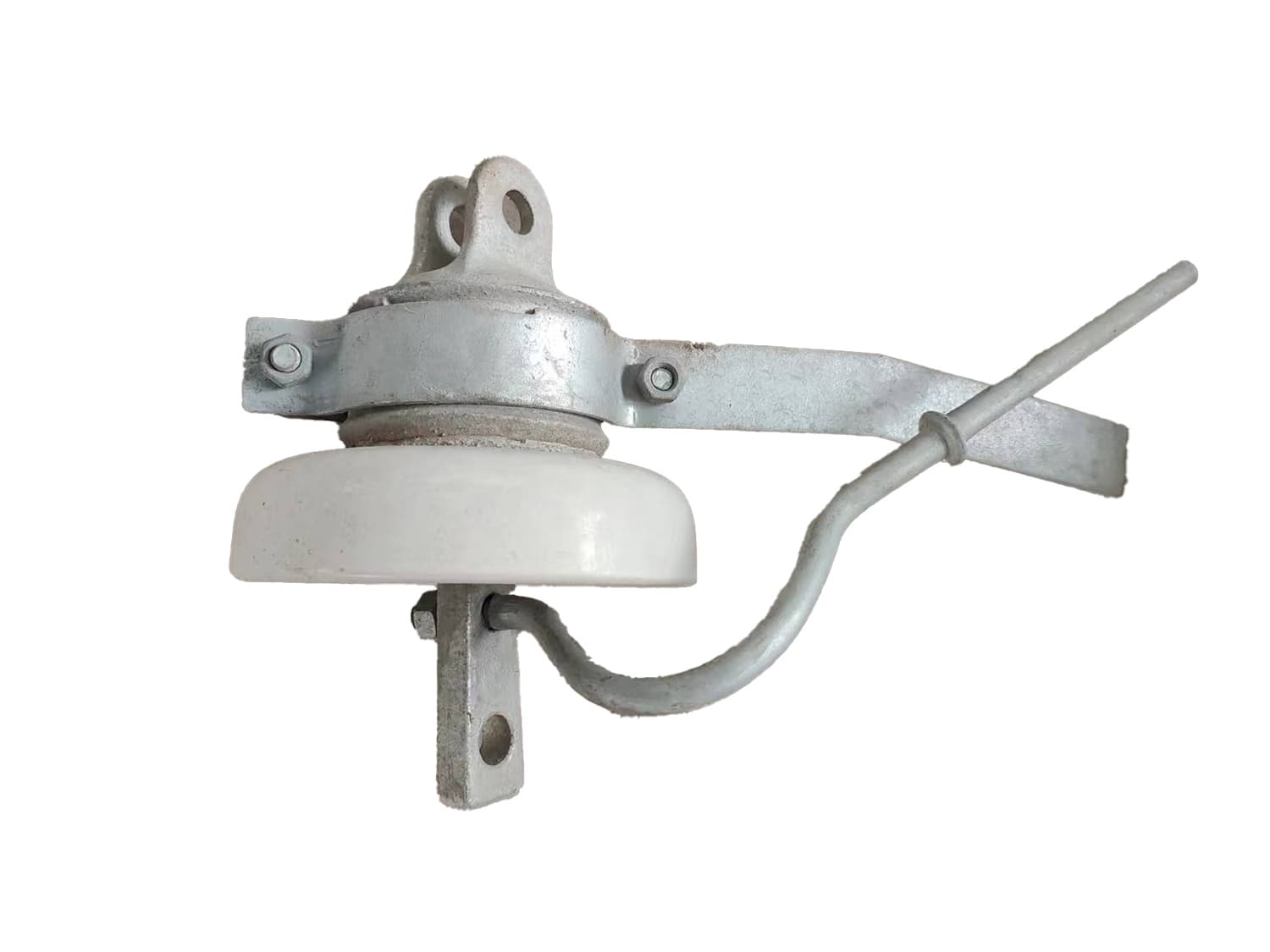

UE70C · 70 kN compact disc
UE120CN · 120 kN ground-wire
UE120C · 120 kN standard
Models
Available models
| Code | Voltage class | Mechanical load | Creepage | Standard |
|---|---|---|---|---|
| XP-40 | — | 40 kN | 240 mm | GB/T 7253 |
| XP-70 | — | 70 kN | 320 mm | GB/T 7253 |
| XP-100 | — | 100 kN | 320 mm | GB/T 7253 |
FAQ
Frequently asked questions
Which standards do Disc suspended porcelain insulator for ground wire comply with?
All Disc suspended porcelain insulator for ground wire from InsulatorX are type-tested to GB/T 7253. Type-test reports are issued by independent laboratories including CEPRI and KEMA, and buyer factory audits or witness testing are welcome.
What ratings are available for Disc suspended porcelain insulator for ground wire?
Disc suspended porcelain insulator for ground wire are supplied across 40–100 kN. Send us your line voltage, span tension and creepage requirement and our engineers will size the right model with margin.
Which Disc suspended porcelain insulator for ground wire models can I order?
Catalogue models include XP-40, XP-70, XP-100. Custom dimensions, shed profiles, creepage extension and connection markings are available on request.
Can Disc suspended porcelain insulator for ground wire be supplied for coastal or heavy-pollution lines?
Yes. We raise creepage distance and offer fog / anti-pollution profiles or hydrophobic silicone housings, sized to your site pollution class — typically class III to IV near the coast.
How do I request a quotation and what is the lead time for Disc suspended porcelain insulator for ground wire?
Email your specifications — voltage, mechanical load, creepage, environment, quantity and INCOTERM — to support@insulatorx.com. We reply within one business day; lead time is 4 to 6 weeks for standard models and 8 to 14 weeks for custom designs, shipped EXW / FOB / CIF / DDP.
